← Home · Demoscene Techniques

Copper Effects — Bars, Raster Splits, Gradients, and Sine Cycling

Overview

The Copper is the single most important tool in the demoscene coder's arsenal. With only three instructions — WAIT, MOVE, and SKIP — it can repaint the entire screen 50 times per second, changing color registers, bitplane pointers, scroll offsets, and sprite positions at exact scanline boundaries. Every iconic Amiga demo effect, from the rainbow copper bars in Red Sector's Megademo (1989) to the sinus-scrolling message waves in Desert Dream (1993, Demozoo), traces back to someone figuring out how to make the Copper do something Commodore's engineers never intended.

This article covers the specific techniques demoscene coders developed for the Copper: classic copper bars, raster splits for multi-resolution screens, gradient shading, sine-based color cycling, and advanced tricks like copper-generated chunky pixels and mid-frame copper list swaps. For the Copper's hardware architecture and basic programming model, see Copper and Copper Programming.

graph TB
    subgraph "Basic"
        CB["Copper Bars<br/>Color register writes per scanline"]
        GS["Gradient Shading<br/>Smooth color ramps"]
    end
    subgraph "Intermediate"
        RS["Raster Splits<br/>Mid-frame register changes"]
        SIN["Sine Cycling<br/>Table-driven color waves"]
    end
    subgraph "Advanced"
        CC["Copper Chunky<br/>Color register = pixel"]
        DB["Double-Buffer Lists<br/>Mid-frame copper swap"]
        SM["Self-Modifying Lists<br/>Runtime copper patching"]
    end

    CB --> RS
    GS --> SIN
    RS --> CC
    SIN --> SM
    CC --> DB

Demo Screenshots

The following screenshots from Pouet.net show copper effects in landmark demoscene productions. Each captures a single frame of effects that are typically animated at 50 Hz.

Demo	Year	Copper Technique

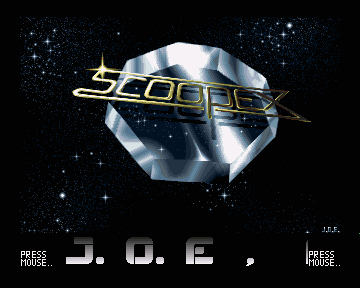

Scoopex Megademo	1987	First copper bars

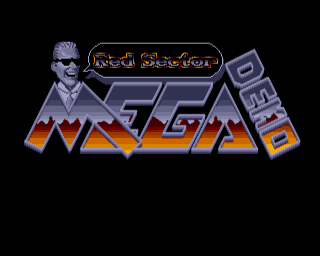

Red Sector Megademo	1989	Sine-scrolling text, raster splits
Budbrain Megademo	1990	Copper bars + vectorbobs
Copper Master	1990	Ultimate copper showcase

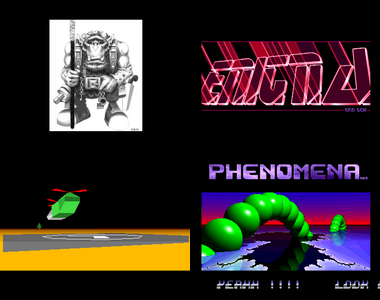

Enigma	1991	Copper + filled vectors
Xpose	1992	Copper bars extravaganza

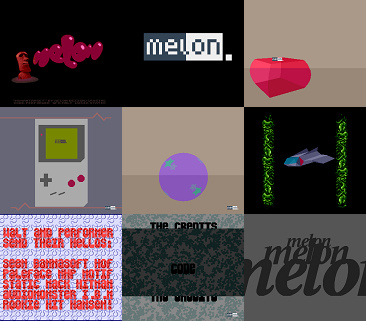

Human Target	1992	Smooth copper gradients
Arte	1993	Copper chunky (COLOR01 per pixel)
Desert Dream	1993	Copper parallax + sine scroll

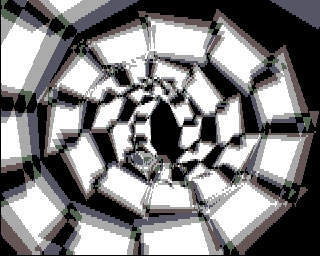

Friday at Eight	1995	Combined copper/Blitter

Hardware Foundation

What the Copper Can Write To

The Copper writes to the custom chip register space ($DFF000–$DFF1FF). For demo effects, the most important targets are:

Register	Address	Effect	Used For
`COLOR00`	`$DFF180`	Background color	Copper bars, gradients
`COLOR01`–`COLOR31`	`$DFF182–$DFF1BE`	Palette colors	Gradient fills, chunky pixels
`BPLCON0`	`$DFF100`	Bitplane depth/resolution	Raster splits, resolution mixing
`BPLCON1`	`$DFF102`	Horizontal scroll offset	Wave distortion, parallax
`BPL1MOD`/`BPL2MOD`	`$DFF108`/`$DFF10A`	Bitplane modulo	Sine-wave distortion
`BPL1PTH`–`BPL6PTH`	`$DFF0E0–$DFF0EC`	Bitplane pointers	Screen splitting, page flipping
`SPRxPTH/L`	`$DFF120–$DFF13E`	Sprite pointers/position	Sprite multiplexing
`DIWSTRT`/`DIWSTOP`	`$DFF08E`/`$DFF090`	Display window	Overscan, split display
`DDFSTRT`/`DDFSTOP`	`$DFF092`/`$DFF094`	Data fetch window	Resolution changes

Copper Instruction Timing

Instruction	Words	DMA Cycles	Notes
`WAIT`	2	2	Stalls until beam reaches position
`MOVE`	2	2	Writes a value to a register
`SKIP` (AGA)	2	2	Conditional skip of next instruction
`WAIT + MOVE`	4	4	The basic unit of most effects

Important

Each WAIT + MOVE pair costs 4 DMA slots per scanline. The Copper gets ~226 available slots per LoRes scanline (after bitplane, sprite, and audio DMA). This means roughly 56 color register writes per scanline maximum — the practical budget for copper effects.

Technique 1: Copper Bars

The classic Amiga demo effect. Copper bars are horizontal bands of color created by writing different values to COLOR00 (or any color register) at each scanline. The result is a series of colored stripes across the screen.

How It Works

sequenceDiagram
    participant Beam as Video Beam
    participant Copper as Copper
    participant CR as COLOR00 $DFF180

    Note over Beam: Scanline 50
    Beam->>Copper: Beam reaches (50,0)
    Copper->>CR: MOVE #$0F00 → dark blue
    Note over Beam: Scanline 51
    Beam->>Copper: Beam reaches (51,0)
    Copper->>CR: MOVE #$0FF0 → cyan
    Note over Beam: Scanline 52
    Beam->>Copper: Beam reaches (52,0)
    Copper->>CR: MOVE #$0FFF → white
    Note over Beam: Scanline 53
    Beam->>Copper: Beam reaches (53,0)
    Copper->>CR: MOVE #$0FF0 → cyan
    Note over Beam: Scanline 54
    Beam->>Copper: Beam reaches (54,0)
    Copper->>CR: MOVE #$0F00 → dark blue

Complete Copper Bar Example

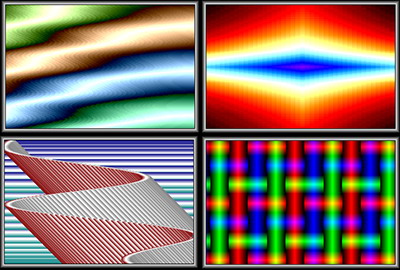

Angels' Copper Master (1990) — the definitive copper bar demonstration, showing dozens of simultaneous color bands.

; copper_bars.asm — Classic copper bars (OCS/ECS)
; Assembles with vasm -m68k -Fbin -o copper.bars copper_bars.asm

COPPER_START:
        ; ---- Wait for scanline 30 (top of display) ----
        dc.w    $801E,$FFFE           ; WAIT y=30, x=0 (encoded as 1E, mask FFFE)
        dc.w    $801E,$FFFE           ; WAIT again for strict timing

        ; ---- Bar 1: warm colors (lines 50-58) ----
        dc.w    $8032,$FFFE           ; WAIT line 50
        dc.w    $0180,$0200           ; MOVE #$0200 → COLOR00 (dark red)
        dc.w    $8033,$FFFE           ; WAIT line 51
        dc.w    $0180,$0444           ; MOVE #$0444 → COLOR00 (red)
        dc.w    $8034,$FFFE           ; WAIT line 52
        dc.w    $0180,$0F88           ; MOVE #$0F88 → COLOR00 (orange)
        dc.w    $8035,$FFFE           ; WAIT line 53
        dc.w    $0180,$0FFF           ; MOVE #$0FFF → COLOR00 (bright)
        dc.w    $8036,$FFFE           ; WAIT line 54
        dc.w    $0180,$0F88           ; MOVE #$0F88 → COLOR00 (orange)
        dc.w    $8037,$FFFE           ; WAIT line 55
        dc.w    $0180,$0444           ; MOVE #$0444 → COLOR00 (red)
        dc.w    $8038,$FFFE           ; WAIT line 56
        dc.w    $0180,$0200           ; MOVE #$0200 → COLOR00 (dark red)

        ; ---- Bar 2: cool colors (lines 80-88) ----
        dc.w    $8050,$FFFE           ; WAIT line 80
        dc.w    $0180,$0002           ; MOVE #$0002 → COLOR00 (dark blue)
        dc.w    $8051,$FFFE           ; WAIT line 81
        dc.w    $0180,$0446           ; MOVE #$0446 → COLOR00 (blue)
        dc.w    $8052,$FFFE           ; WAIT line 82
        dc.w    $0180,$088F           ; MOVE #$088F → COLOR00 (cyan)
        dc.w    $8053,$FFFE           ; WAIT line 83
        dc.w    $0180,$0FFF           ; MOVE #$0FFF → COLOR00 (white)
        dc.w    $8054,$FFFE           ; WAIT line 84
        dc.w    $0180,$088F           ; MOVE #$088F → COLOR00 (cyan)
        dc.w    $8055,$FFFE           ; WAIT line 85
        dc.w    $0180,$0446           ; MOVE #$0446 → COLOR00 (blue)
        dc.w    $8056,$FFFE           ; WAIT line 86
        dc.w    $0180,$0002           ; MOVE #$0002 → COLOR00 (dark blue)

        ; ---- Clear background ----
        dc.w    $8060,$FFFE           ; WAIT line 96
        dc.w    $0180,$0000           ; MOVE #$0000 → COLOR00 (black)

        ; ---- End of copper list ----
        dc.w    $FFFF,$FFFE           ; WAIT forever (end marker)

Sine-Animated Copper Bars

The Silents' Xpose (1992) — animated copper bars driven by sine tables with multiple phase offsets.

Static bars are boring. The demoscene animates them by updating the copper list's color values each frame from a pre-calculated sine table:

/* sine_copper.c — Animate copper bars with sine-wave colors */

#include <exec/types.h>
#include <graphics/gfxbase.h>

/* OCS color format: 0RGB, 4 bits per component */
#define RGB(r,g,b)  ((UWORD)(((r)<<8)|((g)<<4)|(b)))

/* Pre-calculated sine table (256 entries, 0-255 range) */
extern const UBYTE sine_table[256];

/* Copper bar definitions — 3 bars, each 9 scanlines */
#define NUM_BARS     3
#define BAR_HEIGHT   9
#define BAR_SPACING  30
#define FIRST_LINE   50

/* Color gradients for each bar (symmetric: dark→bright→dark) */
static const UWORD bar_gradient[BAR_HEIGHT] = {
    RGB(1,0,0), RGB(2,1,0), RGB(4,2,1),
    RGB(8,4,2), RGB(15,8,4),  /* peak */
    RGB(8,4,2), RGB(4,2,1), RGB(2,1,0), RGB(1,0,0)
};

/* Base hue offsets for each bar (r,g,b component weights) */
static const UWORD hue_r[NUM_BARS] = { 15, 0, 0 };
static const UWORD hue_g[NUM_BARS] = { 4, 12, 4 };
static const UWORD hue_b[NUM_BARS] = { 0, 0, 15 };

void update_copper_bars(UWORD *copper_ptr, ULONG frame) {
    int bar, line;

    for (bar = 0; bar < NUM_BARS; bar++) {
        /* Phase offset per bar — creates wave motion */
        int phase = (frame * 3 + bar * 85) & 0xFF;
        int brightness = sine_table[phase]; /* 0-255 */

        for (line = 0; line < BAR_HEIGHT; line++) {
            UWORD *wait_ptr = copper_ptr;      /* WAIT instruction */
            UWORD *move_ptr = copper_ptr + 2;  /* MOVE instruction */
            UWORD grad = bar_gradient[line];

            /* Scale gradient by sine brightness */
            int r = ((grad >> 8) & 0xF) * hue_r[bar] * brightness / (15 * 255);
            int g = ((grad >> 4) & 0xF) * hue_g[bar] * brightness / (15 * 255);
            int b = (grad & 0xF) * hue_b[bar] * brightness / (15 * 255);

            /* Clamp to 0-15 */
            if (r > 15) r = 15;
            if (g > 15) g = 15;
            if (b > 15) b = 15;

            move_ptr[1] = RGB(r, g, b);  /* Patch the MOVE data word */
            copper_ptr += 4;              /* Advance past WAIT+MOVE pair */
        }
    }
}

Technique 2: Raster Splits

A raster split changes display parameters mid-frame. The most common use is a status bar at the top of the screen (fixed resolution) with a scrolling game area below (different bitplane pointers, scroll offset, or even resolution).

Split-Screen Architecture

Budbrain Megademo (1990) — copper bars and raster splits used to create multiple display regions.

graph TB
    subgraph "Frame Layout"
        TOP["Lines 0-49:<br/>Title Bar (HiRes, 4 bitplanes)"]
        GAME["Lines 50-249:<br/>Game Area (LoRes, 5 bitplanes, scrolling)"]
        BOT["Lines 250-311:<br/>Bottom Border / VBlank"]
    end

    subgraph "Copper Actions"
        C1["Copper at line 0:<br/>Set BPLCON0=$9200 (HiRes 4bpp)"]
        C2["Copper at line 50:<br/>Set BPLCON0=$D200 (LoRes 5bpp)<br/>Set BPLCON1 scroll<br/>Swap bitplane pointers"]
        C3["Copper at line 250:<br/>Kill display (DIWSTOP)"]
    end

    C1 --> TOP
    C2 --> GAME
    C3 --> BOT

Split-Screen Copper List

; raster_split.asm — Status bar + scrolling game area
; Top 44 lines: HiRes 4-bitplane title bar
; Bottom 200 lines: LoRes 5-bitplane scrolling game

COPPER_SPLIT:
        ; ---- Top section: HiRes title bar ----
        dc.w    $8001,$FFFE           ; WAIT line 1
        dc.w    $0100,$9200           ; BPLCON0: HiRes, 4 bitplanes, color on

        ; Set bitplane pointers for title bar image
        dc.w    $00E0,title_bpl1      ; BPL1PTH
        dc.w    $00E2,title_bpl1+2    ; BPL1PTL (word-aligned)
        dc.w    $00E4,title_bpl2
        dc.w    $00E6,title_bpl2+2
        dc.w    $00E8,title_bpl3
        dc.w    $00EA,title_bpl3+2
        dc.w    $00EC,title_bpl4
        dc.w    $00EE,title_bpl4+2

        dc.w    $0108,$0000           ; BPL1MOD = 0 (no modulo for HiRes)
        dc.w    $010A,$0000           ; BPL2MOD = 0

        ; ---- Split point: switch to game area ----
        dc.w    $802C,$FFFE           ; WAIT line 44
        dc.w    $0100,$D200           ; BPLCON0: LoRes, 5 bitplanes, color on

        ; Swap bitplane pointers to game bitmap
        dc.w    $00E0,game_bpl1
        dc.w    $00E2,game_bpl1+2
        dc.w    $00E4,game_bpl2
        dc.w    $00E6,game_bpl2+2
        dc.w    $00E8,game_bpl3
        dc.w    $00EA,game_bpl3+2
        dc.w    $00EC,game_bpl4
        dc.w    $00EE,game_bpl4+2
        dc.w    $00F0,game_bpl5
        dc.w    $00F2,game_bpl5+2

        dc.w    $0102,$0000           ; BPLCON1: scroll = 0 (updated per frame)
        dc.w    $0108,$0000           ; BPL1MOD (updated per frame)
        dc.w    $010A,$0000           ; BPL2MOD

        ; ---- End of display ----
        dc.w    $FFFF,$FFFE           ; WAIT forever

Technique 3: Gradient Shading

Gradient shading creates smooth color transitions — the signature "Amiga sky" effect. The technique writes COLOR01–COLORxx progressively at each scanline, creating a smooth ramp from one color to another.

Linear Color Interpolation

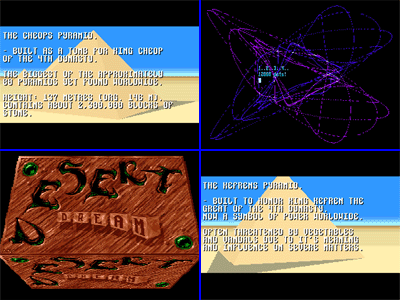

Kefrens' Desert Dream (1993) — smooth copper gradients creating the parallax sky effect.

OCS colors are 4-bit per component (0–15). To create a gradient from color A to color B over N scanlines, interpolate each component independently:

/* gradient.c — Compute copper list for a sky gradient */

#define RGB(r,g,b)  ((UWORD)(((r)<<8)|((g)<<4)|(b)))

void make_gradient_sky(UWORD *copper, int first_line, int num_lines,
                       UWORD color_top, UWORD color_bot) {
    int y;
    int r1 = (color_top >> 8) & 0xF, r2 = (color_bot >> 8) & 0xF;
    int g1 = (color_top >> 4) & 0xF, g2 = (color_bot >> 4) & 0xF;
    int b1 =  color_top       & 0xF, b2 =  color_bot       & 0xF;

    for (y = 0; y < num_lines; y++) {
        /* Linear interpolation with rounding */
        int r = r1 + ((r2 - r1) * y + (num_lines / 2)) / num_lines;
        int g = g1 + ((g2 - g1) * y + (num_lines / 2)) / num_lines;
        int b = b1 + ((b2 - b1) * y + (num_lines / 2)) / num_lines;

        /* WAIT for target line, then MOVE color */
        *copper++ = 0x8001 | ((first_line + y) << 8);  /* WAIT y */
        *copper++ = 0xFFFE;                              /* x mask */
        *copper++ = 0x0180;                              /* MOVE → COLOR00 */
        *copper++ = RGB(r, g, b);
    }
}

Typical Gradient Ramps

Effect	Top Color	Bottom Color	Lines	Description
Sunset sky	`$0F44` (orange)	`$0202` (dark blue)	200	Warm→cool transition
Deep ocean	`$0448` (teal)	`$0002` (navy)	150	Light→dark depth
Metallic bar	`$0888` (gray)	`$0FFF` (white)	10	Specular highlight
Dawn	`$0000` (black)	`$0F80` (pink)	100	Night→sunrise

Technique 4: Sine-Based Color Cycling

The demoscene rarely uses static gradients. Instead, color values are driven by sine tables with different phase offsets, creating fluid wave effects. The key insight: use multiple sine waves with different frequencies and phases, then combine them.

Sine Table Generation

/* sine_gen.c — Generate a 256-entry sine table (0-255 range) */
/* In practice, this is pre-computed at build time */

#include <math.h>

void generate_sine_table(UBYTE *table) {
    int i;
    for (i = 0; i < 256; i++) {
        double s = sin(2.0 * 3.14159265 * i / 256.0);
        table[i] = (UBYTE)((s + 1.0) * 127.5);  /* 0-255 range */
    }
}

Multi-Wave Color Cycling

Melon Dezign's Human Target (1992) — silky smooth copper gradients driven by sine waves.

The classic demoscene effect cycles three sine waves (one per RGB component) with different frequencies:

/* color_cycle.c — Animate copper bar colors with multi-wave sine */

void animate_color_cycle(UWORD *copper_colors, int num_entries,
                         ULONG frame) {
    int i;
    for (i = 0; i < num_entries; i++) {
        /* Three sine waves: R at 1×, G at 2×, B at 3× frequency */
        int phase_r = (frame * 2 + i * 3) & 0xFF;
        int phase_g = (frame * 3 + i * 5) & 0xFF;
        int phase_b = (frame * 5 + i * 7) & 0xFF;

        int r = sine_table[phase_r] >> 4;  /* 0-15 */
        int g = sine_table[phase_g] >> 4;
        int b = sine_table[phase_b] >> 4;

        copper_colors[i] = RGB(r, g, b);
    }
}

Phenomena's Enigma (1991) — multi-wave sine copper cycling creating a water/plasma effect, combined with filled-vector rendering.

Sine Scrolling (Scrolling Sinus)

One of the most iconic effects: a text message that scrolls across the screen in a sine wave pattern. This is achieved by changing BPLCON1 (scroll offset) or BPLxMOD (modulo) per scanline:

; sine_scroll.asm — Per-scanline BPLCON1 modulation

        ; ---- In VBlank interrupt handler ----
        ; Apply sine-wave scroll offsets to copper list
        ; copper_mod_points[] points to the BPLCON1 MOVE data words

scroll_sine_text:
        move.l  scroll_phase,d0
        addq.l  #2,d0                  ; Advance phase
        move.l  d0,scroll_phase

        lea     sine_table,a0
        lea     copper_mod_points,a1   ; Array of ptrs to MOVE data words
        move.w  #NUM_SCROLL_LINES-1,d1

.next_line:
        move.b  (a0,d0.w),d2           ; Get sine value
        lsr.w   #4,d2                  ; Scale to 0-15 scroll range
        move.w  d2,(a1)+               ; Patch copper MOVE data word
        addq.w  #4,d0                  ; Advance phase per line
        dbra    d1,.next_line
        rts

Technique 5: Double-Buffered Copper Lists

Advanced effects swap the active copper list mid-frame. The Copper hardware reads a COP1LC register to know where its list starts. By changing COP1LC during vertical blank, or even mid-frame, you can chain multiple copper lists together:

sequenceDiagram
    participant VBI as VBlank Interrupt
    participant CPU as 68000 CPU
    participant Copper as Copper
    participant COP1LC as COP1LC Register

    Note over VBI: Frame N starts

    VBI->>CPU: Level 3 interrupt
    CPU->>COP1LC: Set to copper_list_A
    CPU->>CPU: Animate list A colors
    Copper->>Copper: Execute list A (top half of screen)

    Note over Copper: List A ends with<br/>MOVE COP1LC → copper_list_B

    Copper->>COP1LC: Self-jump to list B
    CPU->>CPU: Animate list B colors
    Copper->>Copper: Execute list B (bottom half)

Copper List Chaining

; double_copper.asm — Chain two copper lists in one frame

LIST_A:
        ; First half of screen: copper bars
        dc.w    $8032,$FFFE           ; WAIT line 50
        dc.w    $0180,$0F00           ; COLOR00 = blue
        ; ... more bars ...
        dc.w    $8080,$FFFE           ; WAIT line 128

        ; Chain to LIST_B: write COP1LCH and COP1LCL
        dc.w    $0080,LIST_B>>16      ; COP1LCH = high word of LIST_B
        dc.w    $0082,LIST_B&$FFFF    ; COP1LCL = low word
        dc.w    $0088,0                ; COPJMP1 — trigger jump (strobe)
        dc.w    $FFFF,$FFFE           ; Safety WAIT

LIST_B:
        ; Second half: different effects
        dc.w    $8080,$FFFE           ; WAIT line 128
        dc.w    $0180,$000F           ; COLOR00 = red
        ; ... more effects ...
        dc.w    $FFFF,$FFFE           ; End

Technique 6: Self-Modifying Copper Lists

Rather than pre-building the entire copper list, the CPU patches it in real-time during vertical blank. This is how most demoscene effects work — the copper list is a template with placeholder values that get overwritten each frame:

/* smc_copper.c — Self-modifying copper list for animated effects */

/* Copper list with placeholders (marked 0xDEAD) */
static UWORD copper_template[] = {
    /* Bar 1: WAIT + MOVE pairs */
    0x8032, 0xFFFE,  0x0180, 0xDEAD,   /* line 50, COLOR00 = ??? */
    0x8033, 0xFFFE,  0x0180, 0xDEAD,   /* line 51 */
    0x8034, 0xFFFE,  0x0180, 0xDEAD,   /* line 52 */
    0x8035, 0xFFFE,  0x0180, 0xDEAD,   /* line 53 */
    0x8036, 0xFFFE,  0x0180, 0xDEAD,   /* line 54 */

    /* Bar 2 */
    0x8050, 0xFFFE,  0x0180, 0xDEAD,   /* line 80 */
    0x8051, 0xFFFE,  0x0180, 0xDEAD,   /* line 81 */
    0x8052, 0xFFFE,  0x0180, 0xDEAD,   /* line 82 */
    0x8053, 0xFFFE,  0x0180, 0xDEAD,   /* line 83 */
    0x8054, 0xFFFE,  0x0180, 0xDEAD,   /* line 84 */

    0xFFFF, 0xFFFE                       /* End */
};

/* Indices of color data words (every 4th word starting at offset 3) */
#define BAR1_START  3   /* Index of first color word for bar 1 */
#define BAR2_START  13  /* Index of first color word for bar 2 */
#define BAR_LEN     5   /* Entries per bar */

void patch_copper_bars(ULONG frame) {
    int i;

    /* Animate bar 1 with sine wave */
    for (i = 0; i < BAR_LEN; i++) {
        int phase = (frame * 4 + i * 20) & 0xFF;
        int bright = sine_table[phase] >> 4;  /* 0-15 */
        copper_template[BAR1_START + i * 4] = RGB(bright, bright/2, 0);
    }

    /* Animate bar 2 with different phase */
    for (i = 0; i < BAR_LEN; i++) {
        int phase = (frame * 6 + i * 25 + 128) & 0xFF;
        int bright = sine_table[phase] >> 4;
        copper_template[BAR2_START + i * 4] = RGB(0, bright/2, bright);
    }
}

Antipatterns

1. The Copper Overflow

Writing too many color registers per scanline. The Copper has limited DMA bandwidth — each WAIT + MOVE pair costs 4 slots. On a scanline with heavy bitplane DMA (6 planes HiRes), there may be fewer than 20 slots available.

Broken:

; 32 color register writes on one scanline — WILL FAIL
; with 5+ bitplanes active (DMA starvation)
dc.w    $8032,$FFFE
dc.w    $0180,$0F00   ; COLOR00
dc.w    $0182,$0F00   ; COLOR01
dc.w    $0184,$0F00   ; COLOR02
; ... 29 more COLOR writes ...

Fixed:

; Spread color writes across 2-3 scanlines
dc.w    $8032,$FFFE
dc.w    $0180,$0F00   ; COLOR00
dc.w    $0182,$0F00   ; COLOR01
dc.w    $0184,$0F00   ; COLOR02
; ... up to ~10 more is safe with 4 planes LoRes ...

dc.w    $8034,$FFFE   ; Two lines later
dc.w    $0186,$0F00   ; COLOR03
dc.w    $0188,$0F00   ; COLOR04
; ... continue on next scanline ...

2. The Stale Copper List

Forgetting to update the copper list pointer (COP1LC) after modifying the list in RAM. The Copper may have already fetched and cached the old instructions.

Broken:

/* Modify copper list in RAM but don't tell Copper */
copper_list[offset] = new_color;
/* Copper still reads cached/stale data! */

Fixed:

copper_list[offset] = new_color;

/* In VBlank: reload copper pointer to flush cache */
custom.cop1lc = (ULONG)copper_list;
/* Or use COPJMP1 strobe to force immediate reload */

3. The Over-Scanned WAIT

Setting a WAIT position beyond the visible display area. PAL has 313 scanlines (0–312), NTSC has 263 (0–262). A WAIT for line 313 on PAL wraps incorrectly; on NTSC, anything past line 262 never triggers.

Broken:

; Assumes PAL — breaks on NTSC machines
dc.w    $8138,$FFFE   ; WAIT line 312 (PAL only)
dc.w    $0180,$0000   ; Clear color

Fixed:

; Use a safe VBlank wait that works on both PAL and NTSC
dc.w    $FFFF,$FFFE   ; WAIT $FF,$FF — waits forever (end of list)
; Reset at VBlank via interrupt handler instead

4. The Register Collision

Writing to a register that the CPU or Blitter is also modifying in the same frame. The Copper runs asynchronously — it can clobber a value the CPU just set.

Broken:

/* CPU sets COLOR01 for game object highlighting */
custom.color[1] = 0x0FFF;

/* But the copper list also writes COLOR01 at line 100 */
/* → Copper overwrites the CPU's value */

Fixed:

/* Reserve specific color registers for CPU and others for Copper */
/* CPU uses COLOR00-COLOR03, Copper uses COLOR04-COLOR31 */
custom.color[4] = copper_animated_color;  /* Copper-safe */

5. The AGA Position Bug

On AGA, the Copper's horizontal position resolution doubles to 8 bits ($DFF004 BEAMCON0 changes). Using OCS-style horizontal WAIT values produces incorrect timing on AGA hardware. The BPC bit in FMODE ($DFF1FC) controls whether Copper positions are interpreted as low-res or high-res clock cycles.

Broken:

; OCS copper list used directly on AGA — horizontal timing off
dc.w    $8007,$FFFE   ; WAIT x=7 on OCS, but AGA reads x=3.5

Fixed:

; Set FMODE.BPC=0 for OCS-compatible copper timing
; before activating the copper list
dc.w    $01FC,$0000   ; FMODE = 0 (OCS compatibility)

; Or double all horizontal positions for AGA-native mode
dc.w    $800E,$FFFE   ; WAIT x=14 (AGA: same as x=7 OCS)

Decision Guide

flowchart TD
    START[Need visual effect] --> Q1{Color only or<br/>structural change?}
    Q1 -->|Color only| Q2{Smooth gradient<br/>or discrete bars?}
    Q1 -->|Structural| SPLIT[Raster Split:<br/>Change BPLCON0/pointers]

    Q2 -->|Gradient| GRAD[Gradient Shading:<br/>Interpolated COLOR writes]
    Q2 -->|Bars| Q3{Animated or static?}

    Q3 -->|Static| STATIC[Static Copper Bars:<br/>Fixed WAIT+MOVE pairs]
    Q3 -->|Animated| Q4{Wave motion<br/>or pulse?}

    Q4 -->|Wave| SINE[Sine Cycling:<br/>Table-driven per-frame patch]
    Q4 -->|Pulse| PULSE[Brightness modulation:<br/>Single sine per bar]

    SPLIT --> Q5{Same resolution<br/>both halves?}
    Q5 -->|Yes| SIMPLE[Simple split:<br/>Swap BPL pointers only]
    Q5 -->|No| FULL[Full split:<br/>Change BPLCON0 + pointers + modulo]

    STYLE_STATIC --> BUDGET{DMA budget<br/>check}
    GRAD --> BUDGET
    SINE --> BUDGET
    BUDGET -->|Pass| OK[Proceed]
    BUDGET -->|Fail| REDUCE[Reduce color writes<br/>per scanline or<br/>reduce bitplane depth]

Performance Characteristics

DMA Budget Per Scanline

Bitplane Depth	Bitplane DMA Slots	Available for Copper	Max Color Writes
1 plane LoRes	2	~220	~55
2 planes LoRes	4	~218	~54
4 planes LoRes	8	~214	~53
5 planes LoRes	10	~212	~53
6 planes LoRes	12	~210	~52
4 planes HiRes	16	~206	~51
6 planes HiRes	24	~198	~49

Note

Each color register write requires 1 WAIT + 1 MOVE = 4 slots. The "Max Color Writes" column assumes one write per scanline with a WAIT at the start. Consecutive writes without WAIT only cost 2 slots each (MOVE only), but the Copper must WAIT at least once to synchronize.

Historical Timeline

timeline
    title Copper Effects Evolution
    1987 : [Scoopex Megademo](https://www.pouet.net/prod.php?which=5832) — first copper bars demo
    1988 : [Red Sector Megademo](https://www.pouet.net/prod.php?which=3119) — sine-scrolling text wave
    1989 : [Budbrain Megademo](https://www.pouet.net/prod.php?which=1290) — copper bars + vectorbobs
    1990 : [Sanity Arte](https://www.pouet.net/prod.php?which=1477) — copper chunky (color register per pixel)
         : [Angels Copper Master](https://www.pouet.net/prod.php?which=3422) — ultimate copper showcase
    1991 : [Phenomena Enigma](https://www.pouet.net/prod.php?which=394) — copper-driven effects + filled vectors
    1992 : [The Silents Xpose](https://www.pouet.net/prod.php?which=4031) — copper bars extravaganza
         : [Melon Dezign Human Target](https://www.pouet.net/prod.php?which=3459) — smooth copper gradients
    1993 : [Kefrens Desert Dream](https://www.pouet.net/prod.php?which=1483) — copper-driven parallax + sine scroll
    1995 : [Polka Brothers Friday at Eight](https://www.pouet.net/prod.php?which=702) — combined copper/Blt effects
    2000+ : Demoscene continues — WHDLoad copper effects
          : MiSTer FPGA preserves exact copper timing

Modern Analogies

Amiga Copper Concept	Modern Equivalent	Why It Maps
Copper bar (per-line color write)	Fragment shader per-scanline uniform	Both change output color based on Y position
Raster split	Render pass boundary	Both change rendering state at a specific point
Gradient shading	Vertex color gradient	Both interpolate colors across the screen
Sine color cycling	Animated uniform / time-based shader	Both drive color from a function of time
Self-modifying copper list	Dynamic command buffer generation	Both generate GPU commands per frame
Copper list chaining	Multiple render passes	Both execute separate command sequences sequentially
WAIT instruction	GPU pipeline barrier / fence	Both synchronize to display timing
DMA slot budget	Memory bandwidth budget	Both limited by available bus cycles per scanline

Use Cases

Use Case	Technique	Examples
Demo background	Copper bars, sine cycling	Copper Master, Xpose
Game status bar	Raster split	Turrican, Lionheart, Risky Woods
Sky/terrain gradient	Gradient shading	Shadow of the Beast, Agony
Scrolling sine text	BPLCON1/BPLMOD modulation	Red Sector Megademo, Desert Dream
Multi-resolution display	Raster split with BPLCON0 change	Many games (title HiRes, game LoRes)
Water/plasma effect	Multi-wave sine cycling	Enigma, numerous cracktros
Metallic logo shine	Fast gradient sweep across logo	Human Target, Arte
Full-screen copper effect	Copper chunky (see pixel_tricks.md)	Sanity Arte

FPGA / Emulation Impact

Copper effects are among the most timing-sensitive code on the Amiga. Accurate emulation requires:

Concern	Impact	FPGA Notes
Cycle-accurate WAIT	Copper must stall until exact beam position	Minimig/MiSTer implement beam counter compare at cycle granularity
DMA slot allocation	Copper slots must be reserved correctly after bitplane/sprite DMA	Bus arbiter must interleave correctly
Register write latency	Copper writes are visible next cycle	Write buffer must not add latency
COPJMP strobes	List jumps must take effect at exact position	State machine must handle strobe timing
AGA 8-bit horizontal	FMODE.BPC changes position interpretation	Must track FMODE state at copper fetch time
Self-modifying code	CPU writes to copper list must be visible to Copper DMA	Requires cache coherency between CPU writes and DMA reads

Warning

Many WHDLoad patches fix games that relied on specific Copper timing on real hardware. Emulators like WinUAE have "copper timing" settings (exact/default/fast) because some demos only work with specific timing models.

FAQ

Q: How many color changes can I do per scanline? A: On a stock A500 with 4 bitplanes LoRes, approximately 53 WAIT+MOVE pairs per scanline. With 6 bitplanes HiRes, it drops to ~49. Each additional consecutive MOVE (without WAIT) adds 2 slots instead of 4.

Q: Can the Copper read registers? A: No. The Copper has no read capability. It can only WAIT for a beam position and MOVE (write) a value to a register. This is why self-modifying copper lists are done by the CPU writing to Chip RAM — the Copper itself cannot inspect register values.

Q: What is copper chunky and why is it impressive? A: Copper chunky uses the Copper to write COLOR01 at every pixel position across a scanline, creating a chunky-pixel display without any bitplanes at all. It requires extremely precise timing and works only at low resolution. The technique was most famously used in Sanity's Arte (1993):

Sanity's Arte (1993) — full-screen copper chunky: every pixel is a COLOR01 write, no bitplanes used.

See pixel_tricks.md for the full technique.

Q: Do copper effects work on AGA? A: Yes, with caveats. AGA adds an 8-bit horizontal position (vs OCS 7-bit), controlled by the BPC bit in FMODE. AGA also has 256-color registers (COLOR00–COLOR255) instead of 32, allowing much more complex copper effects. However, the higher bandwidth of AGA bitplane DMA leaves fewer slots for the Copper.

Q: Can I use copper effects from AmigaOS? A: Yes, via UCopList — the user copper list attached to a ViewPort. Intuition merges your copper instructions with its own. See Copper Programming for the OS-friendly approach. For full copper control (demos), you take over the hardware directly.

Q: What happens if the Copper runs past the end of a scanline before finishing? A: The Copper simply continues executing on the next scanline. There is no error or trap. The WAIT instruction's purpose is to synchronize — if you don't WAIT, the Copper runs as fast as DMA allows. Effects that don't need per-line synchronization can skip WAITs entirely.

References

Copper — Copper coprocessor hardware: instruction format, UCopList
Copper Programming — Building copper lists, gradients, raster effects
Pixel Conversion — Copper chunky technique, C2P algorithms
Sprites — Sprite multiplexing (Copper repositions sprites)
Video Timing — Scanline anatomy, beam counters
DMA Architecture — DMA slot allocation, bus arbitration
Pixel Tricks — Copper chunky deep dive

External Resources

Copper Demon (technik) — Copper bar tutorial with source code
Amiga Hardware Reference Manual — Chapter 6: Copper coprocessor
Amiga Graphics Archive — https://amiga.lychesis.net/specials/Copper.html — Forensic analysis of copper usage in commercial games (Agony, Bio Challenge, Starray, Wings of Death)
Scoopex Amiga Hardware Programming (Photon) — YouTube playlist — Video walkthroughs of copper bars, raster splits, and sine effects in 68k assembly. Companion articles: coppershade.org
Pouet.net — https://www.pouet.net — Demo database with source code links
Demozoo — https://demozoo.org — Demoscene production encyclopedia

Notable Demos

Demo	Group	Year	Key Copper Technique	Link
Megademo	Scoopex	1987	First copper bars	Pouet
Megademo	Red Sector Inc.	1989	Sine scroll, raster splits	Pouet
Budbrain Megademo	Budbrain	1990	Copper bars + vectorbobs	Pouet
Copper Master	Angels	1990	Ultimate copper showcase	Pouet
Enigma	Phenomena	1991	Copper + filled vectors	Pouet
Xpose	The Silents	1992	Copper bars extravaganza	Pouet
Human Target	Melon Dezign	1992	Smooth copper gradients	Pouet
Arte	Sanity	1993	Copper chunky full-screen	Pouet
Desert Dream	Kefrens	1993	Copper parallax + sine	Pouet \| Demozoo
Friday at Eight	Polka Brothers	1995	Combined copper/Blt	Pouet

38 KiB Raw Permalink Blame History Unescape Escape

Copper Effects — Bars, Raster Splits, Gradients, and Sine Cycling

Overview

Demo Screenshots

Hardware Foundation

What the Copper Can Write To

Copper Instruction Timing

Technique 1: Copper Bars

How It Works

Complete Copper Bar Example

Sine-Animated Copper Bars

Technique 2: Raster Splits

Split-Screen Architecture

Split-Screen Copper List

Technique 3: Gradient Shading

Linear Color Interpolation

Typical Gradient Ramps

Technique 4: Sine-Based Color Cycling

Sine Table Generation

Multi-Wave Color Cycling

Sine Scrolling (Scrolling Sinus)

Technique 5: Double-Buffered Copper Lists

Copper List Chaining

Technique 6: Self-Modifying Copper Lists

Antipatterns

1. The Copper Overflow

2. The Stale Copper List

3. The Over-Scanned WAIT

4. The Register Collision

5. The AGA Position Bug

Decision Guide

Performance Characteristics

DMA Budget Per Scanline

Historical Timeline

Modern Analogies

Use Cases

FPGA / Emulation Impact

FAQ

References

Related Knowledge Base Articles

External Resources

Notable Demos

38 KiB

Raw Permalink Blame History
